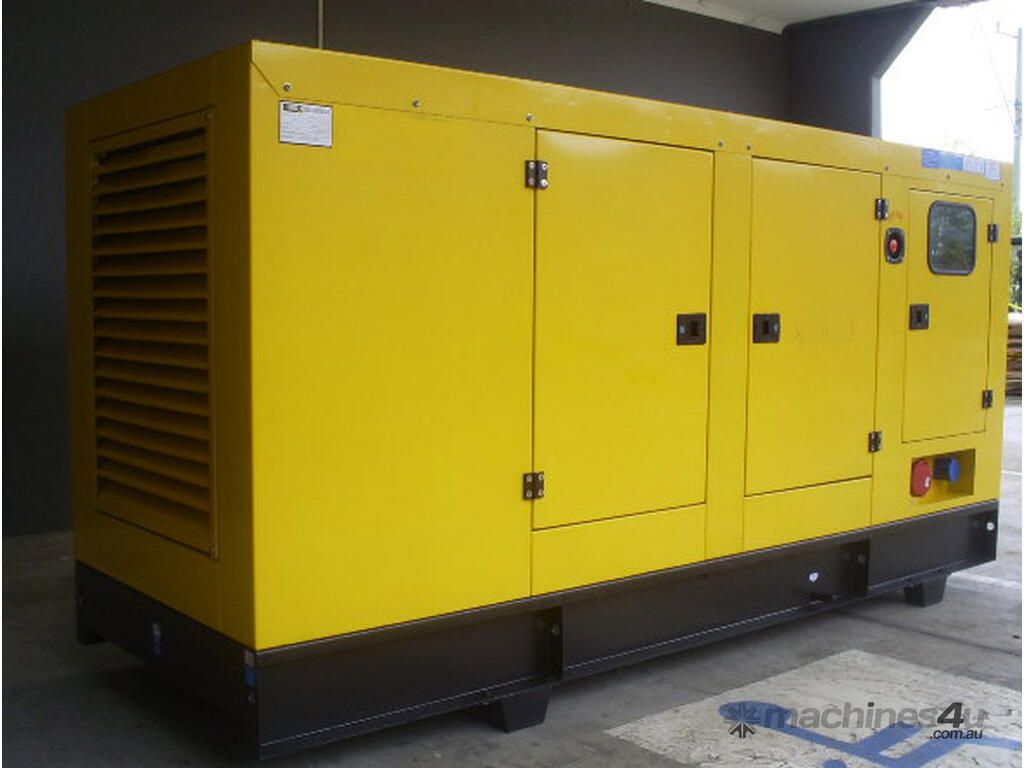

2021 GFS-150 KVA Diesel Generator

CAMPBELLFIELD, VIC

2021 GFS-150 KVA Diesel Generator :      $15,445 AUD ($16,990 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    2019
    Make:
    Agrison
    Model:
    GFS-150KVA
    Electrical Phase:
    Three Phase
    Fuel Type:
    Diesel
    Generator Features:
    Inbuilt Air Compressor
    Prime Rating (kVA):
    150
    Sellers stock ID:
    Gen-150KVA
    Description

    Agrison Diesel Generators have become a necessity for those who require mobile power, back up power or simply just power. The consequences of a sudden loss of power, or no power at all, is not only inconvenient but can also be costly. Agrison offers a wide range of diesel generators of different sizes and kW to suit your needs. Our Diesel Generators are used in a variety of applications and have become a popular choice in the Australian and International market place. Do not be left in the dark, get yourself an Agrison Diesel Generator.
    2 Years Limited Parts Only Warranty


    Specifications:

    ELECTRICAL
    FREQUENCY: 50HZ 3 PH
    VOLTAGE: 415V/230V
    PRIME: 125KVA/100KW
    STANDBY: 137.5KVA/110KW
    Rated Speed: 1500RMP-50HZ
    Circuit Breaker: 4 Poles
    Power Factor: 0.8--3 Phase

    ALTERNATOR
    Model: YHG-100KW
    Poles: 4 poles
    Winding Connections: star
    Insulation: Class H
    Enclosure: IP23
    Exciter System: Self-regulating brushless
    Voltage Regulator: AVR
    Steady State Voltage Regulation: +/- 1.0%
    Bearing Single: bearing sealed
    Coupling: Flexible disc
    Cooling direct: drive centrifugal blower fan

    ENGINE
    R6105AZLD: 50 HZ
    Output Rating: 110 kw
    Manufacturer and model: Weifang
    Fuel: Diesel
    Injection: in-line
    Aspiration: turbo charger
    Cylinders: 6
    Bore and Stroke: 105*130 mm
    Displacement: 6.75 L
    Cooling: Water cooling
    Engine Oil Specification: SAE 3/11.5
    Compression Ratio: 16:1
    Engine Oil Capacity: 17 L
    Governor: Mechanical
    Air Filter: Dry
    Fuel Consumption
    100% Load Prime: 224 G/KW.H
    75% Load Prime 168 G/KW.H
    50% Load Prime: 112 G/KW.H
    100% Load Standby: 246.4 G/KW.H

    EXHAUST SYSTEM
    Maximum Temperature 100% Standby: 400
    Exhaust Flange Size(Internal Diameter): 670 mm

    STARTING SYSTEM
    Starter Motor: KW
    Battery Capacity: 100 AH
    Auxiliary Voltage: 12V

    FUEL SYSTEM
    Fuel Tank Capacity: 8 HOURS

    WEIGHT AND DIMENSIONS - OPEN
    Length: 2470 mm
    Width: 850 mm
    Height: 1270 mm
    Wet Weight(Standard Build): 1450 kg
    Dry Weight(Standard Build): 1420 kg

    WEIGHT AND DIMENSIONS - CANOPY
    Length: 2800 mm
    Width: 1150 mm
    Height: 1610 mm
    Wet Weight(Standard Build): 1560 kg
    Dry Weight(Standard Build): 1520 kg
    Sound pressure(LpA) - 7m: 70 DB

    Alarms and shutdown functions (S-Shutdown A - Alarm)
    High Coolant Temperature: S
    Low Oil Pressure: S
    Unexpected Shutdown: A
    Battery Charge Alternator Failure: A
    Over Speed: S
    Failure to Start: A
    Emergency Stop: A
    Alternator-high Frequency: S
