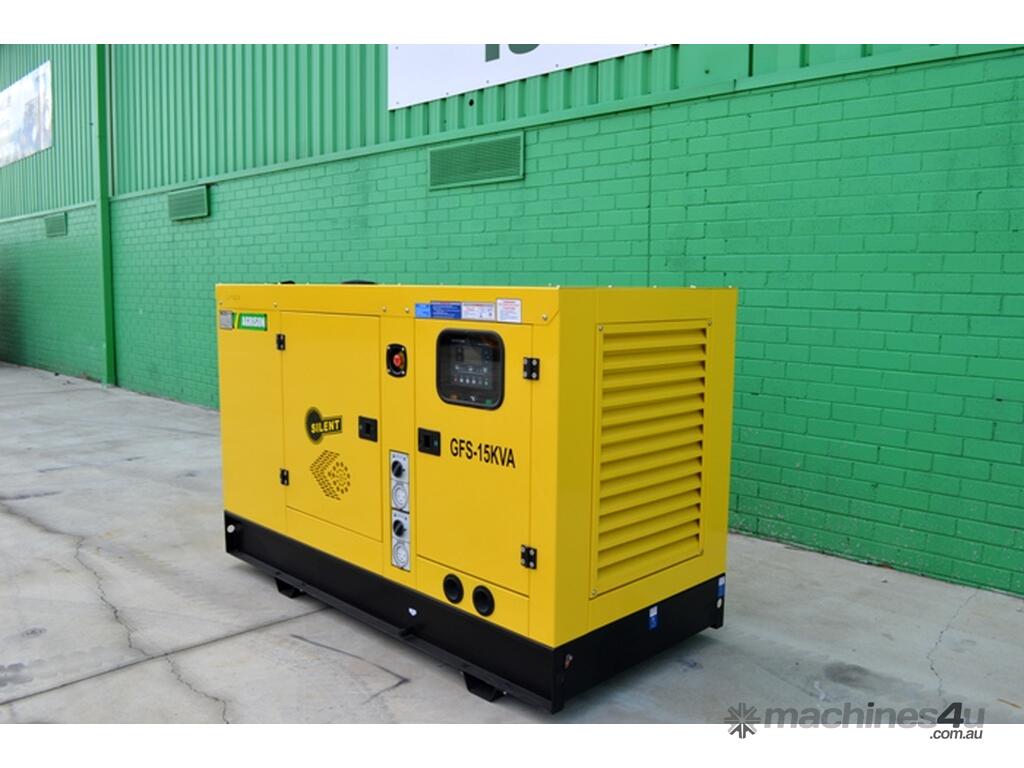

2021 GFS-15 KVA Diesel Generator

CAMPBELLFIELD, VIC

2021 GFS-15 KVA Diesel Generator :      $5,445 AUD ($5,990 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    Quoted to Customer Spec
    Year:
    2019
    Make:
    Agrison
    Electrical Phase:
    Three Phase
    Fuel Type:
    Diesel
    Generator Features:
    Standby Power
    Engine Brand:
    Kubota Engine
    Sellers stock ID:
    Gen-15LVA
    Description

    Agrison 15 KVA Diesel Generators

    Cleaner, Greener & Safer

    Energy Supply with Difference

    The Agrison Diesel Generator range is designed to offer a cleaner, greener and safer energy solution. The most suitable application is for construction and mining sites, where durability and reliability matters when supplying power to a wide range of tools and equipment. With a large range of open and closed diesel generators. The Agrison range has become a popular choice amongst the Australian market place
    2 Years Limited Parts Only Warranty

    Specifications:

    ELECTRICAL
    FREQUENCY: 50HZ 3 PH
    VOLTAGE: 415V/230V
    PRIME: 15KVA/12KW
    STANDBY: 16.5KVA/13.2KW
    Rated Speed: 1500RMP-50HZ
    Circuit Breaker: 4 Poles
    Power Factor: 0.8--3 Phase
    Current (A): 20.9

    ALTERNATOR
    Model: 15KVA
    Poles: 4 poles
    Winding Connections: star
    Insulation: Class H
    Enclosure: IP23
    Exciter System: Self-regulating brushless
    Voltage Regulator: AVR
    Steady State Voltage Regulation: +/- 1.0%
    Bearing Single: bearing sealed
    Coupling: Flexible disc
    Cooling direct: drive centrifugal blower fan

    ENGINE
    480D-14KW: 50 HZ
    Output Rating: 14 kw
    Model: 480D
    Fuel: Diesel
    Injection: in-line
    Aspiration: Naturally Aspirated
    Cylinders: 4
    Bore and Stroke: 80*90 mm
    Displacement: 1.809 L
    Cooling: Water cooling
    Engine Oil Specification: SAE 3/11.5
    Compression Ratio: TBA
    Engine Oil Capacity: 13 L
    Governor: Mechanical
    Air Filter: Dry Twin Stage
    Fuel Consumption
    100% Load Prime: 3.2 L/HR
    75% Load Prime 2.4 L/HR
    50% Load Prime: 1.6 L/HR

    STARTING SYSTEM
    Starter Motor: 12 KW
    Battery Capacity: 80 AH
    Auxiliary Voltage: 12V

    FUEL SYSTEM
    Fuel Tank Capacity: 8 -12 HOURS variable on load

    WEIGHT AND DIMENSIONS - CANOPY
    Length: 1800 mm
    Width: 800 mm
    Height: 1120 mm
    Wet Weight(Standard Build): 680 kg
    Dry Weight(Standard Build): 750 kg

    Alarms and shutdown functions (S-Shutdown A - Alarm)
    High Coolant Temperature: S
    Low Oil Pressure: S
    Unexpected Shutdown: A
    Battery Charge Alternator Failure: A
    Over Speed: S
    Failure to Start: A
    Emergency Stop: A
    Alternator-high Frequency: S
